Add backend servers by specifying their ENIs

Overview

An elastic network interface (ENI) is a virtual network interface that can be attached to an Elastic Compute Service (ECS) instance in a virtual private cloud (VPC). ENIs can improve the availability of clusters and offer cost savings in service failovers and fine-grained network management. You can add a backend server to an SLB instance by specifying the primary or secondary IP address of the ENI used by the backend server.

Procedure

1. On the Instances page, click the instance.

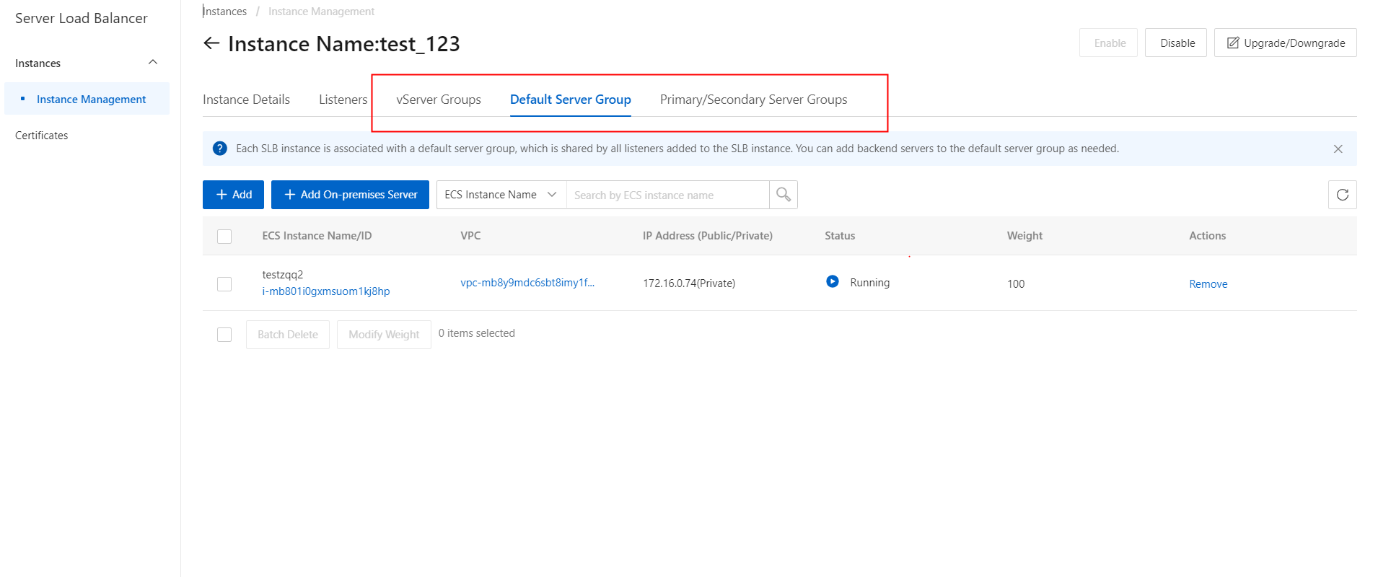

2. On the Instances Management page, click the vServer Groups tab.

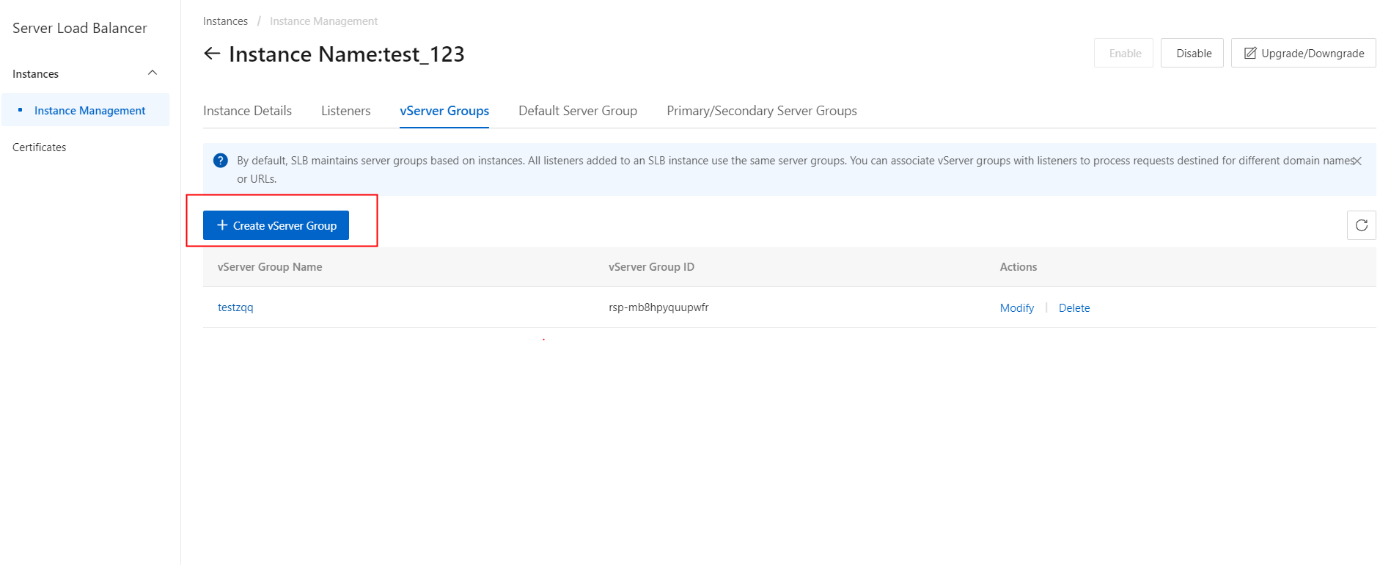

3. On the vServer Groups section, click the Create vServer Group button.

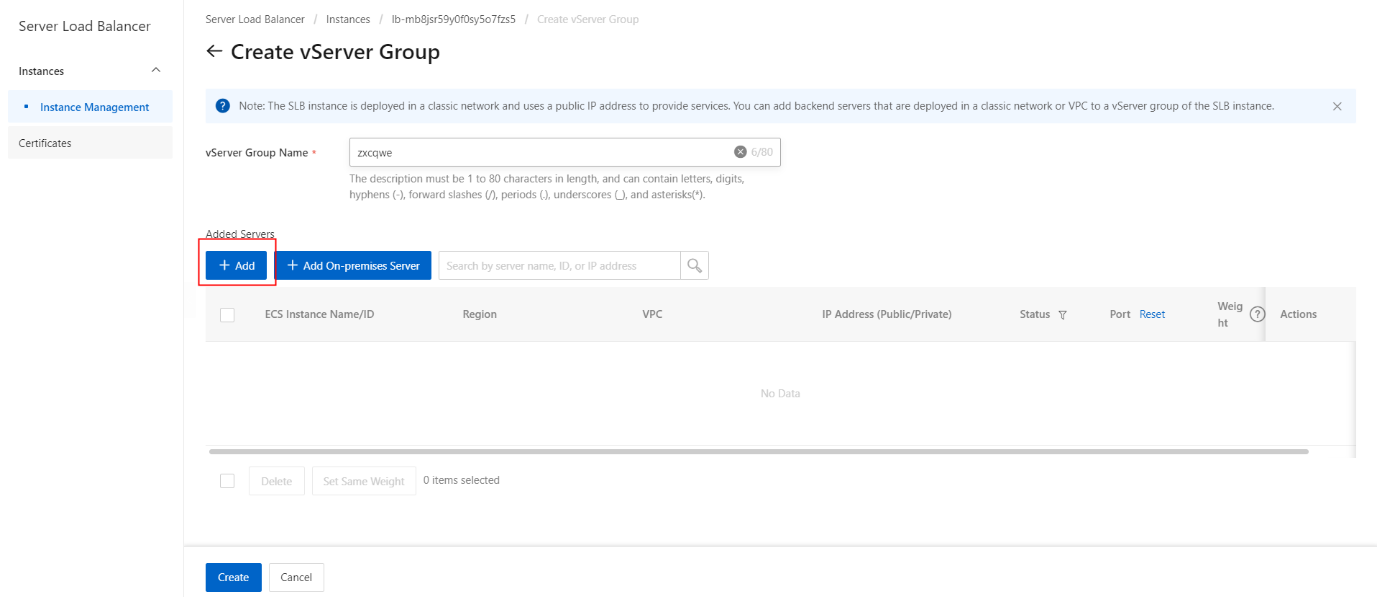

4. On the Create vServer Group section, click the Add button

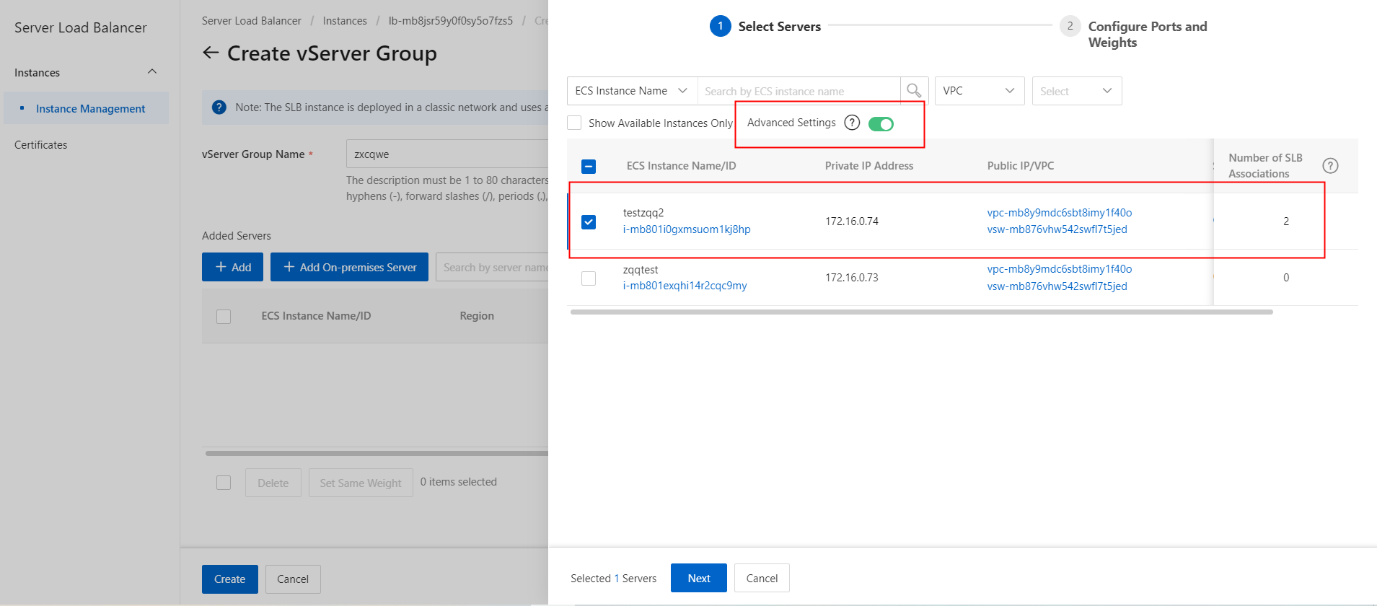

5. On the Select Servers section, select an ECS Instance Name from the drop-down list.

6. On the Select Servers section, turn on Advanced Mode.


7. On the Select Servers section, select the backend servers that you want to add.

8. On the Select Servers section, click the Next button.

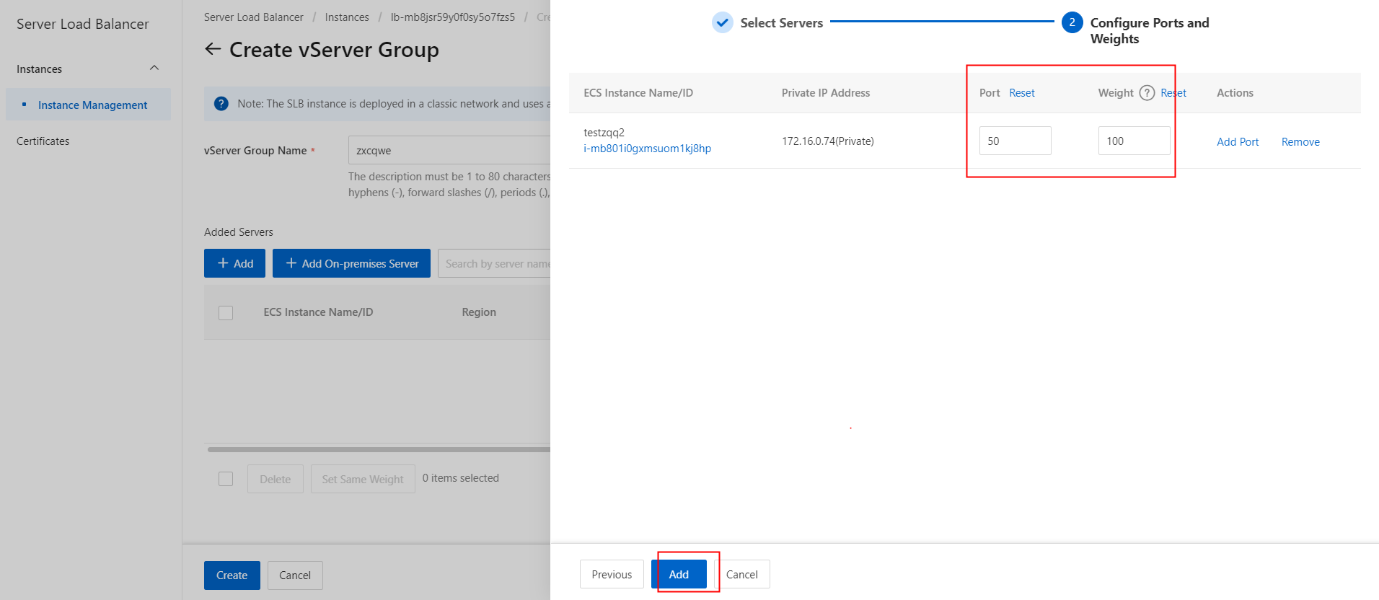

9. On the Configure Ports and Weights section, specify the ports and weights of the backend servers.

10. On the Configure Ports and Weights section, click the Add button.
    Note: After you add backend servers to the server group of the listener, you can view the server group that contains the primary and secondary ENIs on the Instances page.




11. On the Create vServer Group section, click the Create button.

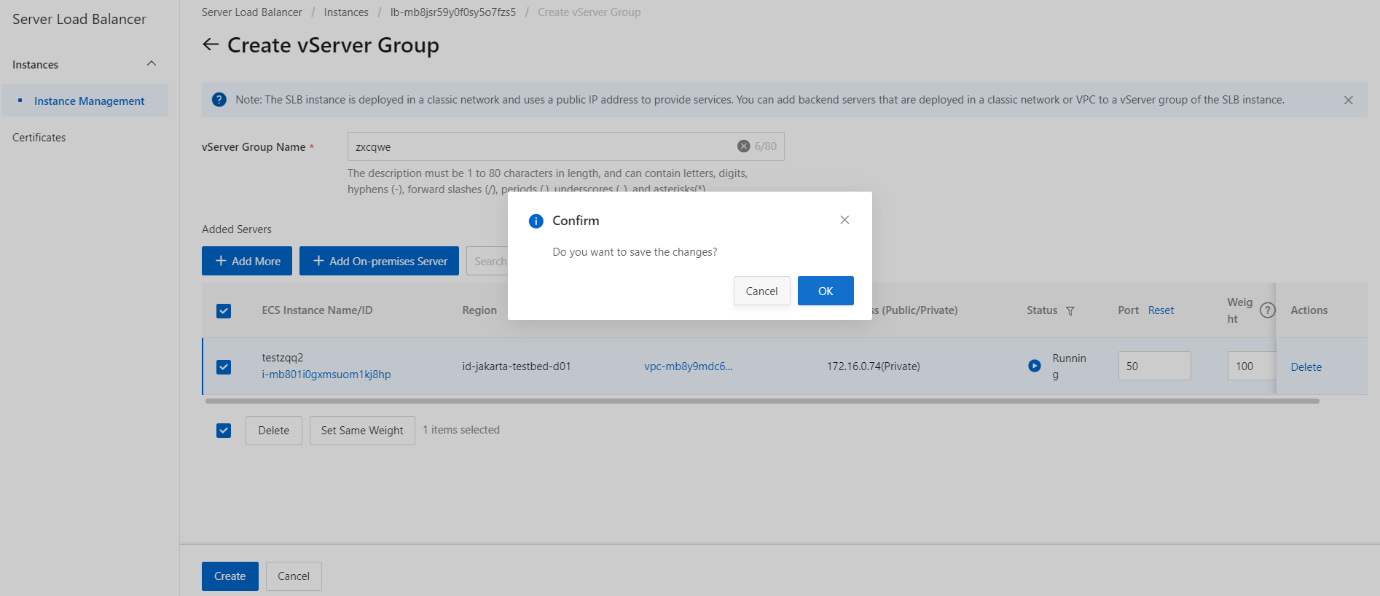

12. On the pop-up message, click the OK button.
