Add on-premises servers to the vServer group

Overview

This topic describes how to create a vServer group and then add on-premises servers to the vServer group. A vServer group is a group of Elastic Compute Service (ECS) instances or on-premises servers. If you associate a vServer group with a listener, the listener distributes requests only to backend servers in the vServer group.

Prerequisites

Before you create a vServer group, make sure that applications are deployed on the on-premises servers and the servers are ready to receive requests.

Procedure

1. On the Instances page, click the instance.

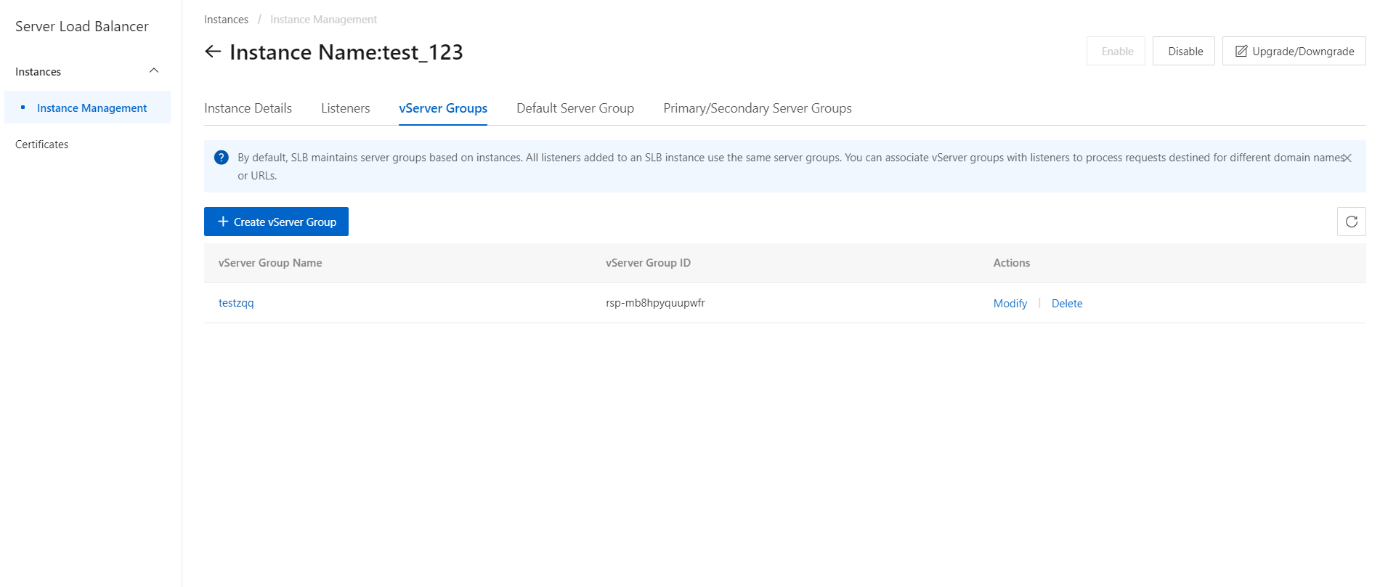

2. On the Instances Management page, click the vServer Group tab.

3. On the vServer section, click the Create vServer Group button.

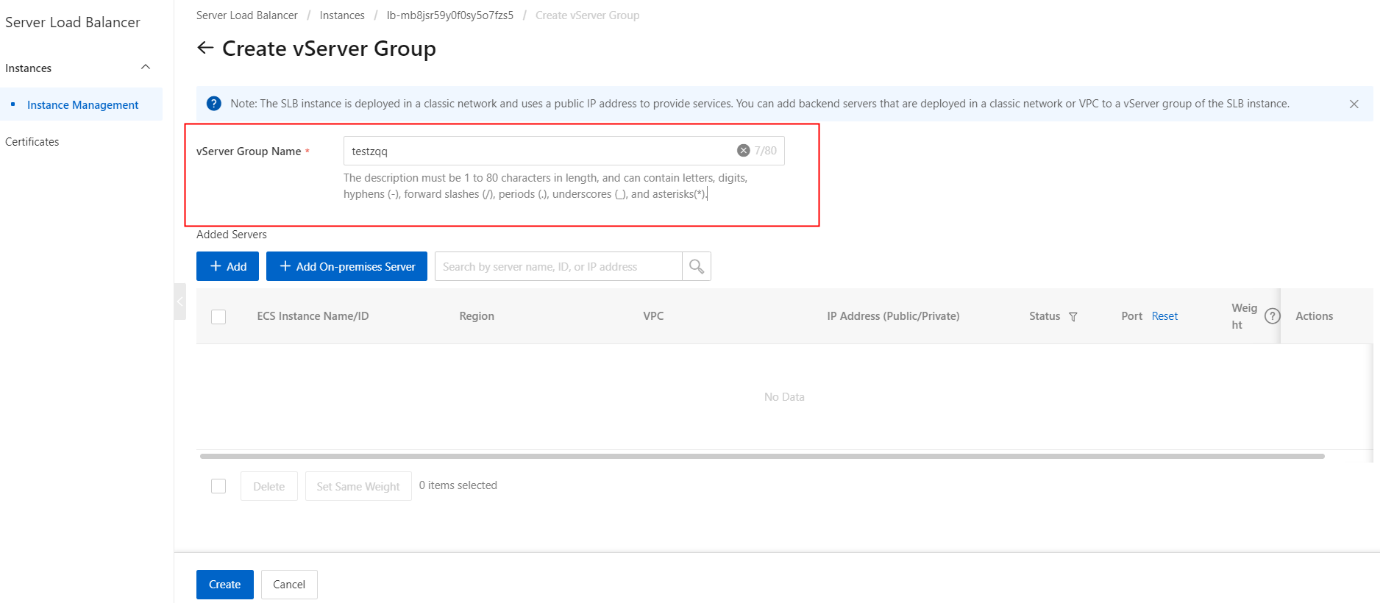

4. On the Create vServer Group Name section, enter a name.
5. On the Create vServer section, click the Add On-premises Server button.

6. On the Add On-premises Server section, click the Add button.

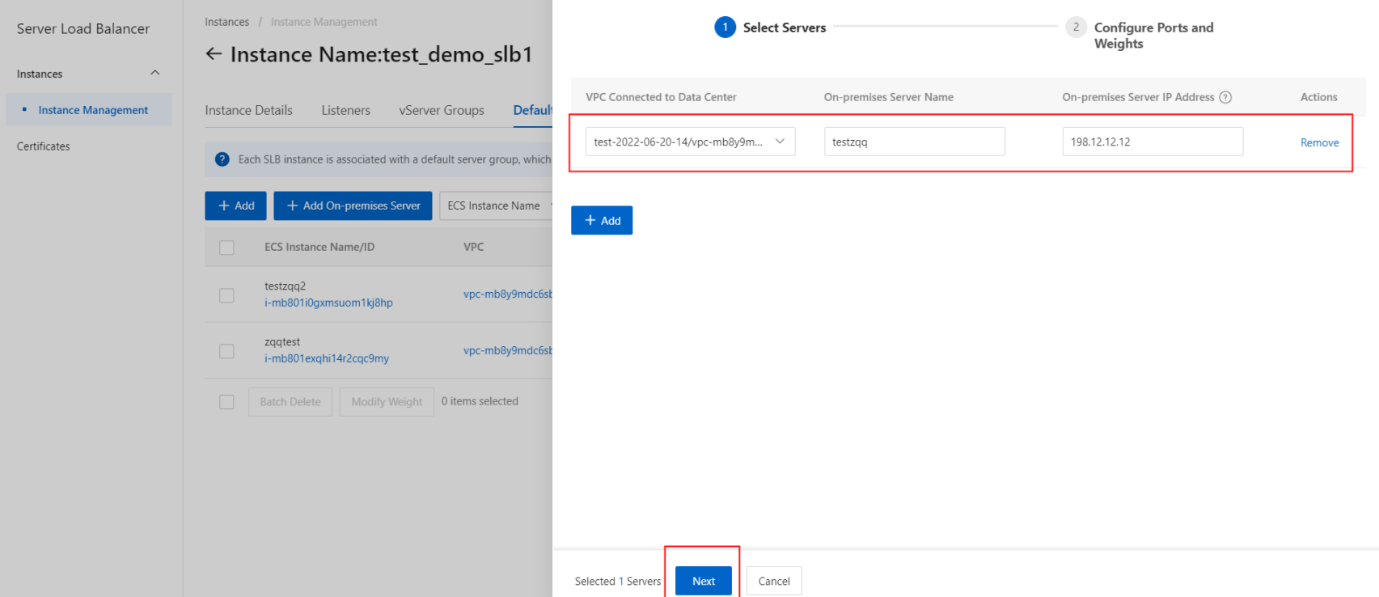

7. On the Select Servers section, select a virtual private cloud (VPC) from the VPC Connected to IDC drop-down list
8. On the Select Servers section, enter a name for the on-premises server that you want to add.
9. On the Select Servers section, specify the IP address of the server.
10. On the Select Servers section, click the Next button.

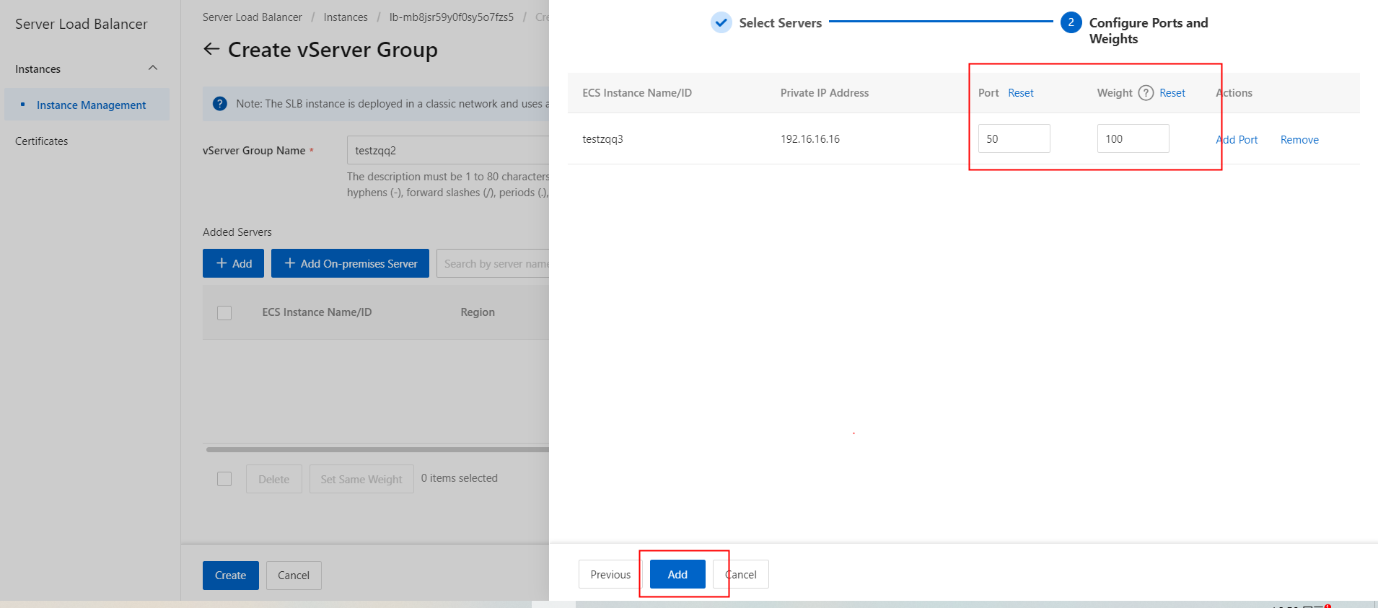

11. On the Configure Ports and Weights page, specify the weight of each on-premises server.
12. On the Configure Ports and Weights page, click the Add button.

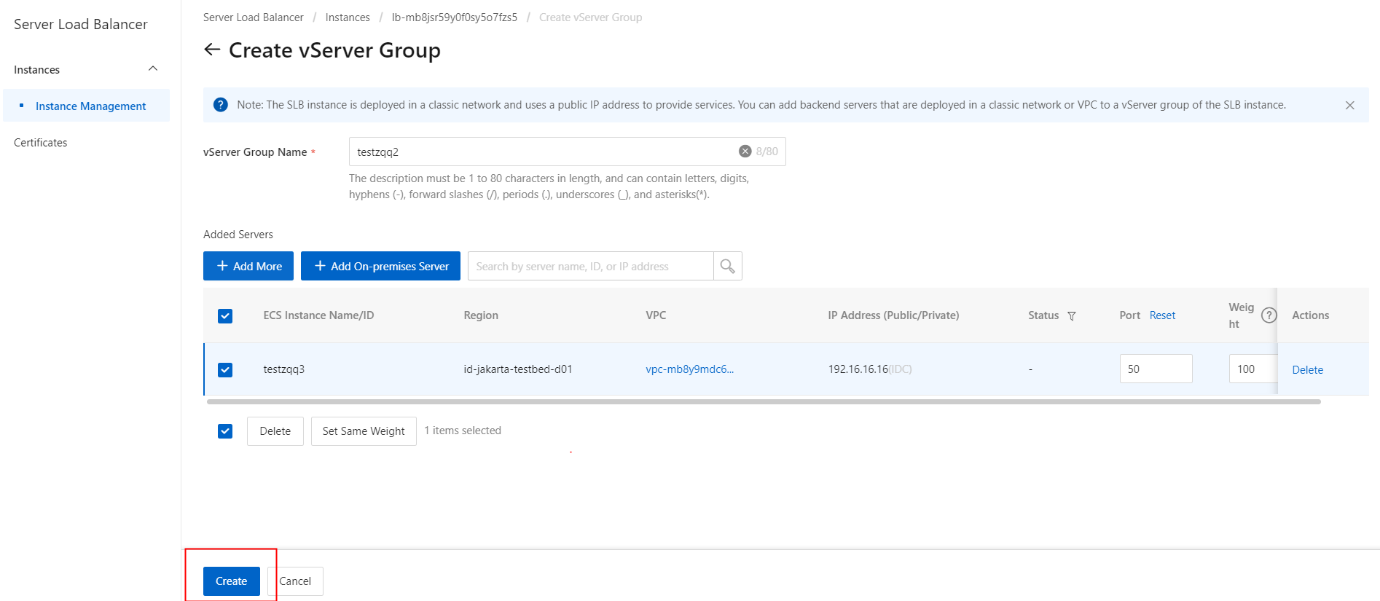

13. On the vServer section, click the Create button.
